Isuzu N-Series » Overview
-
N-Series engines (4HG1, 4HF1, 4JB1) combine improved fuel consumption with high output and torque
-
Exhaust brake (NKR) is an added safety feature on top of the complete occupant protection aspects-rigid cab construction, underview windows for enhanced visibility, and cornering lamps.
-

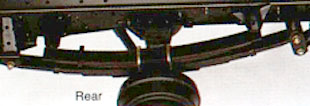

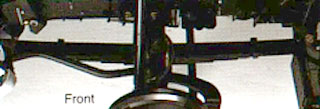

Progressive front and rear leaf springs make up a rugged undercarriage that gives a smooth ride even when the vehicle is unloaded
-
Wide tread, long-span leaf springs and a constant-width frame handles heavy loads with ease
-
Sturdy and long-wearing ladder chassis frame guarantee unsurpassed durability
-
Extensive anti-corrosion treatment makes the cab and frame virtually impervious to rust
-
Tilt cab design, convenient location of fluid reservoirs and filters simplify regular maintenance and optimize uptime
-
Wide range of rear body options makes for cost-effective operations, meeting the logistic requirements of any business.
|
| Isuzu N-Series » Variants |
 |

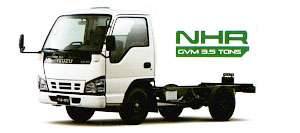

| NHR (GVM 3.5 Tons) |
 |

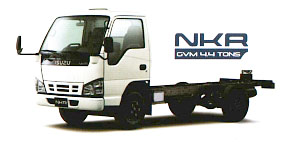

| NKR (GVM 4.4 Tons) |
 |

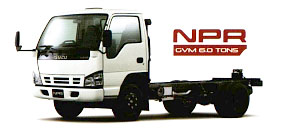

| NPR (GVM 6.0 Tons) |
 |

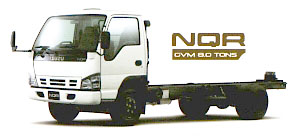

| NQR (GVM 8.0 Tons) |
|
|
|
|
| Isuzu N-Series » Features |
|
NPR/NQR Instrument panel with
urethane steering wheel |
|

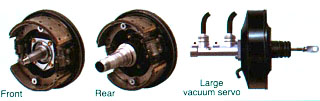

| Stopping Power for Big Loads |
|
|
Brake/Clutch
fluid reservoir |
Windshield
washer tank |
|
|
| Radiator sub-tank |
Waterproof connectors |
|
|
| Air cleaner |
Rear vertical air intake |
|
|
| Fuel filter/Water
separator |
|
| Protection from corrosion |
|

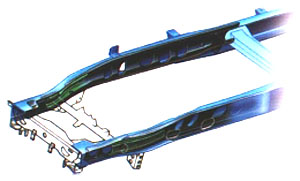

Reinforced frame
box-type cross-sectional structure |
|
|
| Isuzu N-Series » Weights, Dimensions & Performance |
| WEIGHTS (kg) |
GVM |
CHASSIS-CAB MASS |
FRONT |
REAR |
PAYLOAD |
| NHR 55 E |
3,500 |
1,435 |
1,045 |
390 |
2,065 |
| NKR 66 E |
4,400 |
1,650 |
1,200 |
450 |
2,750 |
| NPR 66 P |
6,000 |
2,195 |
1,495 |
700 |
3,805 |
| NQR 71R |
8,000 |
2,445 |
1,585 |
860 |
5,555 |
| DIMENSIONS |
OAL |
WB |
FOH |
ROH |
CE |
CA |
OW |
AW |
BW |
CW |
OH |
HH |
EH |
| NHR 55 E |
4,590 |
2,490 |
1,015 |
1,085 |
3,025 |
1,940 |
1,695 |
1,395 |
1,570 |
1,375 |
2,095 |
190 |
700 |
| NKR 66 E |
4,590 |
2,490 |
1,015 |
1,085 |
3,025 |
1,940 |
1,695 |
1,385 |
1,610 |
1,395 |
2,105 |
190 |
780 |
| NPR 66 P |
6,610 |
3,815 |
1,085 |
1,710 |
4,910 |
3,195 |
1,995 |
1,665 |
1,980 |
1,525 |
2,195 |
210 |
790 |
| NQR 71R |
7,320 |
4,175 |
1,085 |
2,060 |
5,620 |
3,555 |
1,995 |
1,680 |
2,115 |
1,650 |
2,250 |
180 |
830 |
| PERFORMANCE |
MAXIMUM GRADEABILITY (tan Ø)% |
MAXIMUM SPEED (km/h) |
MAXIMUM TURNING RADIUS (m) |
| NHR 55 E |
32.1 |
128 |
5.2 |
| NKR 66 E |
43.0 |
113 |
6.1 |
| NPR 66 P |
30.0 |
103 |
6.9 |
| NQR 71R |
30.0 |
98 |
7.4 |
|
|
| Isuzu N-Series » Applications |
 |
 |
 |
 |
 |
| Passenger Van |
Aluminum Van |
Refrigerated Van |
Fire Truck |
Drop Side |
 |
 |
 |
 |
 |
| Aerial Platform |
Refuse Collector |
Dump |
Crane / Cargo |
Tanker |
|

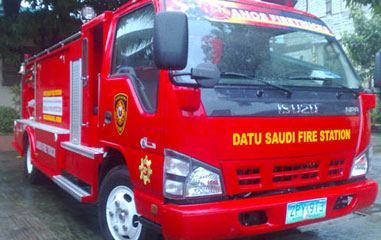

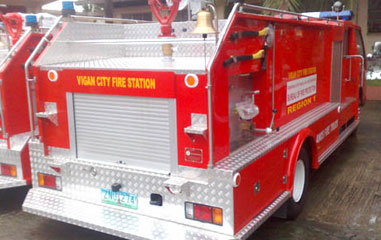

| Isuzu N-Series » Sample Applications (Fire Truck) |
|
| *Specifications are subject to change without prior notice. |
|
|
|
